FEATURES:

• High-quality material: made of aluminum alloy, carefully processed, precise alignment, and user-friendly operation. Very durable.

• Easy to use: Use a 35 mm hole saw, typically set the drilling depth to 12-13 mm, and then secure the limiting ring.

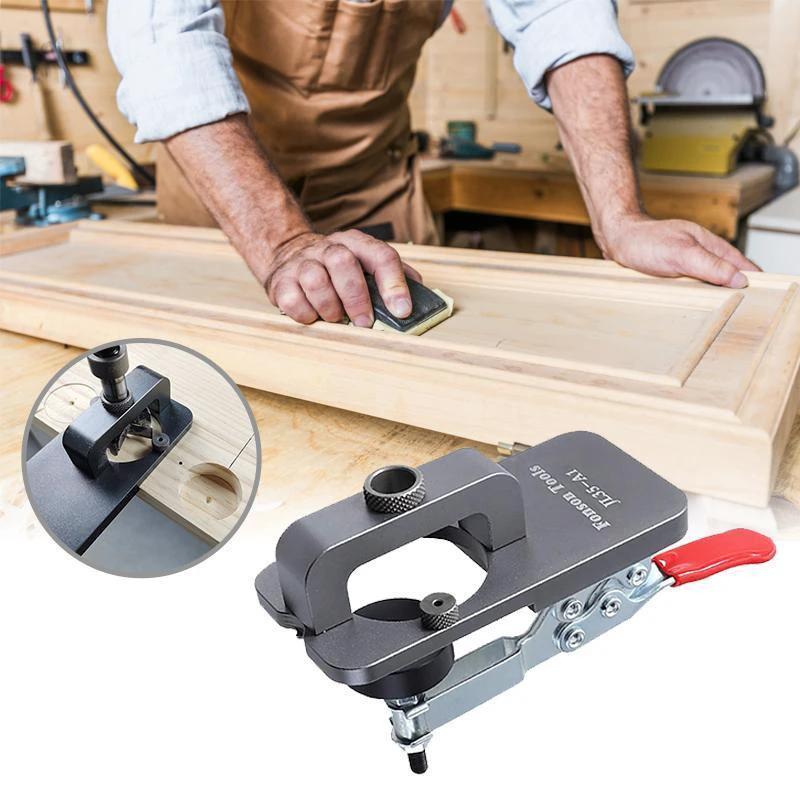

• Flexibly adjustable: The drilling guide can be adjusted to fit different thicknesses of wood panels. An excellent tool set for furniture workshops and hobby woodworkers.

APPLICATION INSTRUCTIONS:

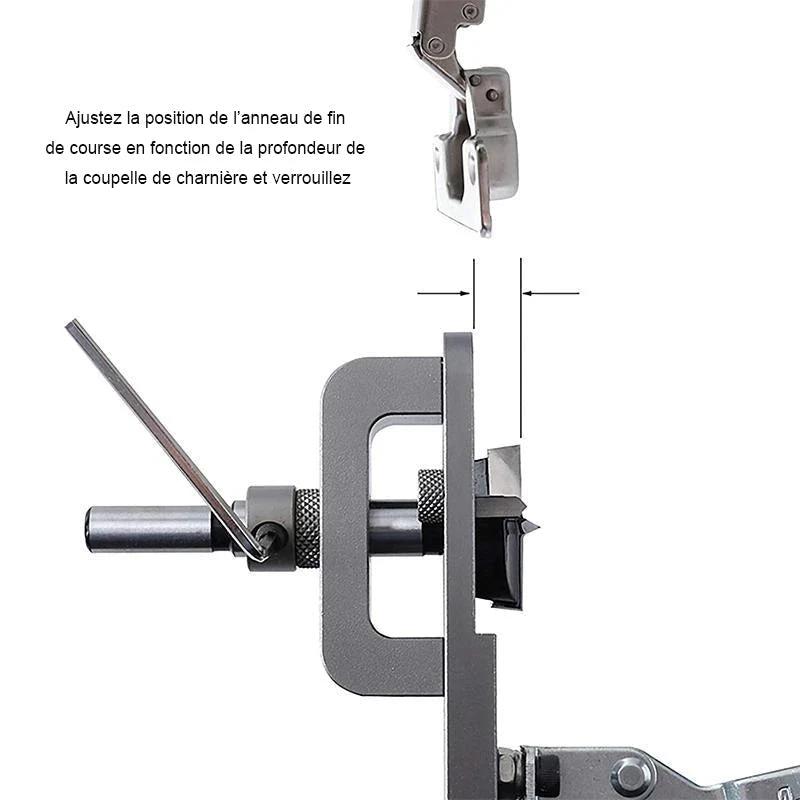

1. Use a 35 mm hole saw, adjust the drilling depth to usually 12 to 13 mm, and then secure the limiting ring.

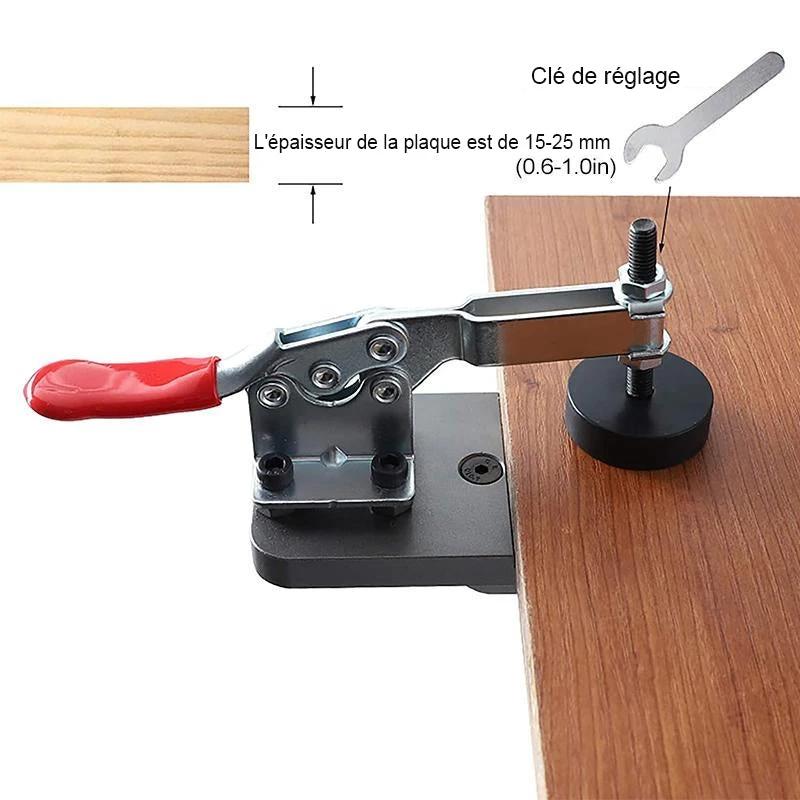

2. Set the fixed size of the black pressing block of the quick clamp (Note: The tool can adjust the size of the fixed board to 15-25 mm).

3. Position the hole punch at the marked location on the panel and secure the quick clamp.

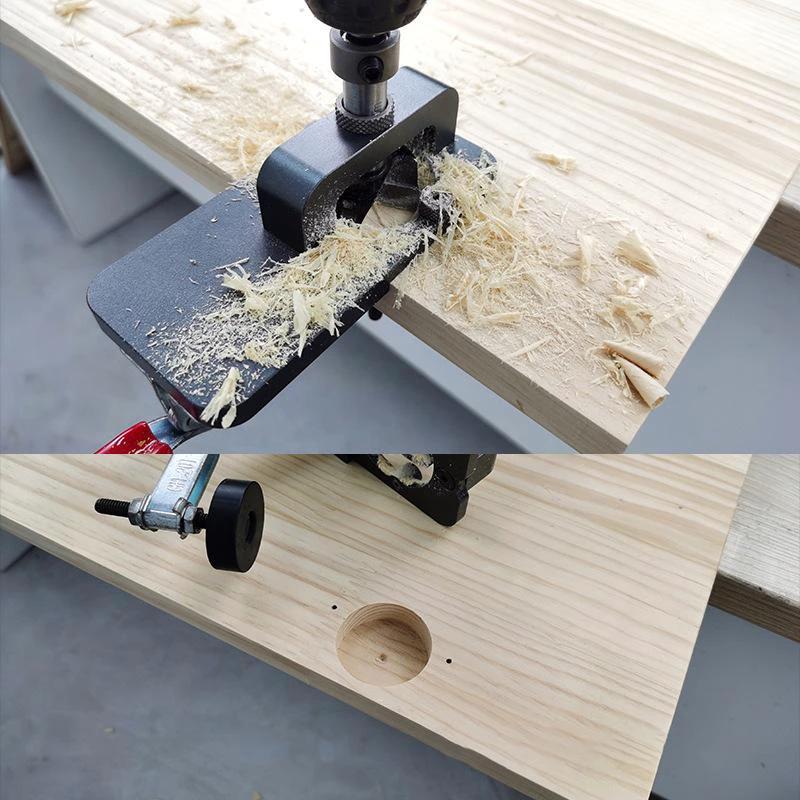

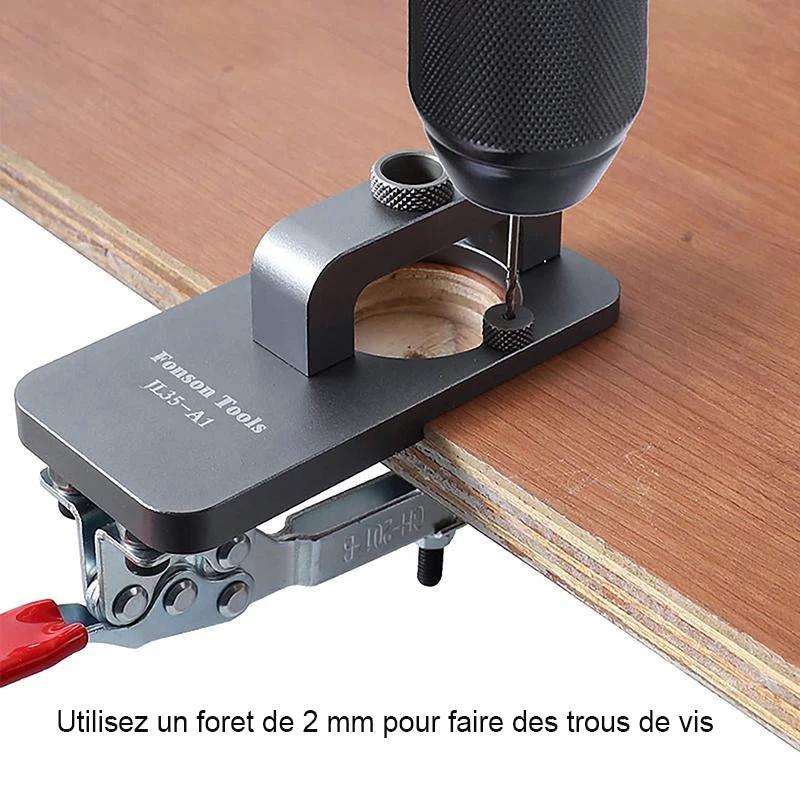

4. Attach the hole saw handle to the electric drill, drill at a steady speed to a depth of 12-13 mm, and then create 2 mm screw holes on the left and right sides.

5. The distance between the 35 mm hole and the edge is 5 mm (this distance is not adjustable), which is suitable for most common hinges.

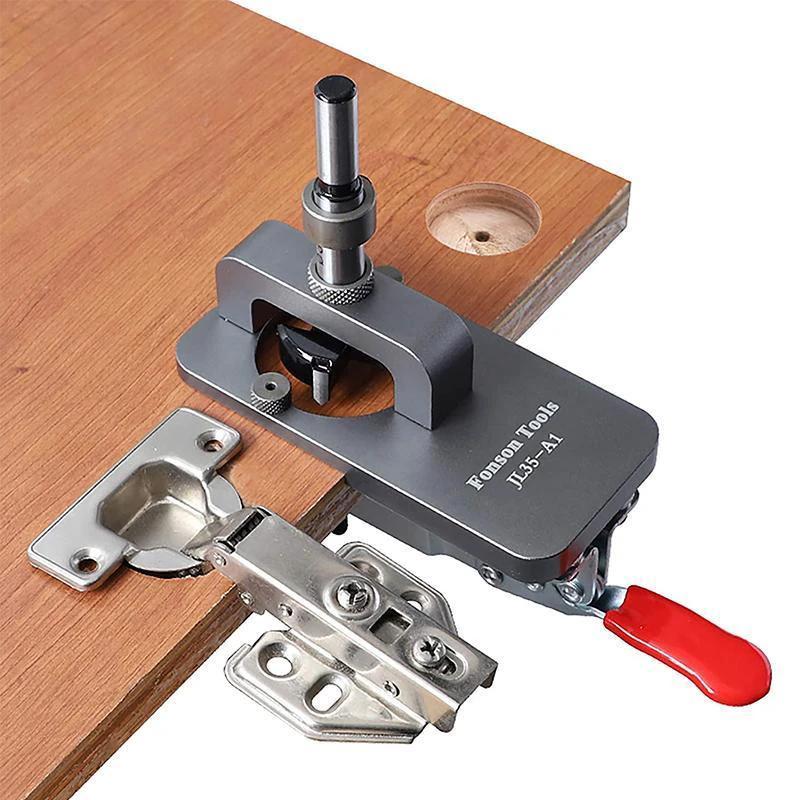

6. Install the 35 mm hinge.

TECHNICAL DATA:

• Material: Aluminum alloy

• Color: Gray

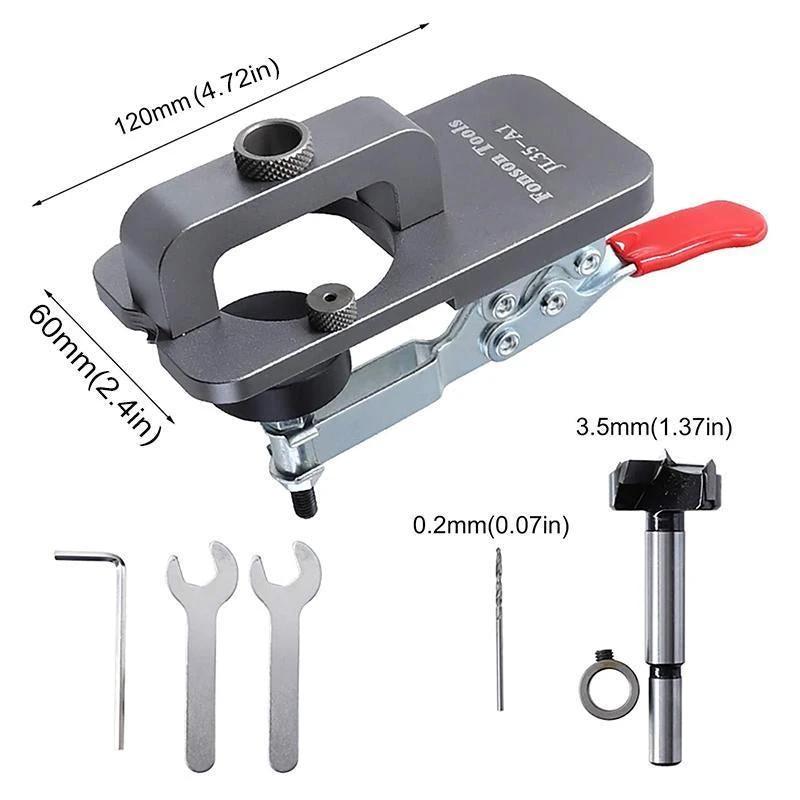

• Dimensions: 120 * 120 * 60 mm

• Weight: 600 g

PACKAGE CONTENT:

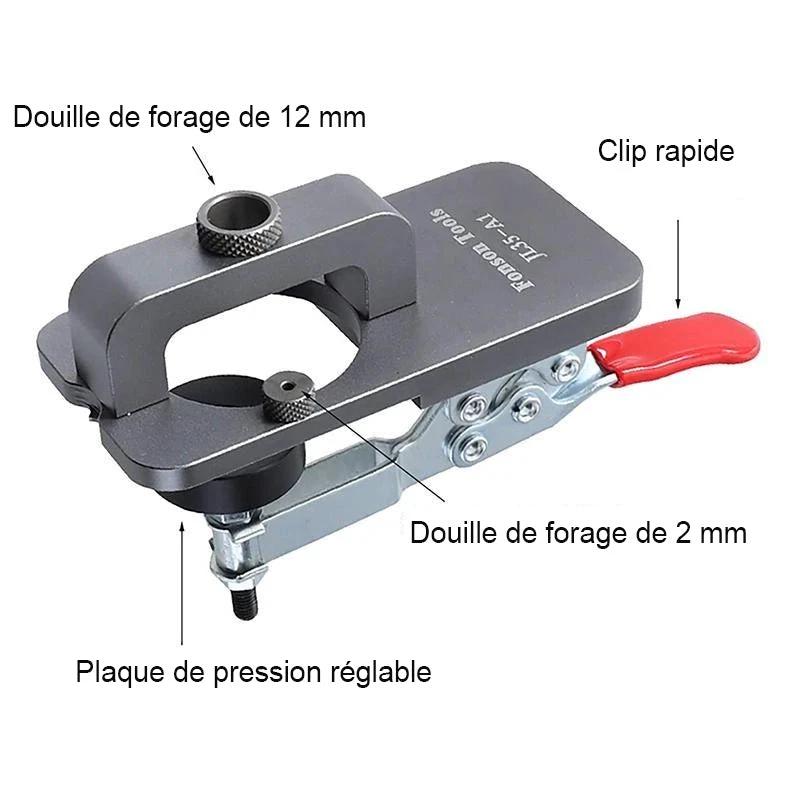

• 1*35 mm mounting set for invisible hinges, including:

  1 * body of the hinge hole guide;
  1 * 35 mm hole saw (including limiting ring);
  2 * keys;
  1 * 2 mm drill;
  1 * Allen key
